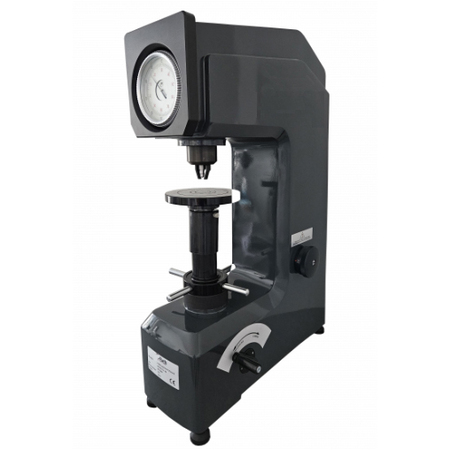

Rockwell Hardness Tester HR-150M
Analog hardness testing machine with mechanical test cycle
- Rockwell hardness tester with high accuracy, reliability and durability at an extremely low price
- Direct analog display of the Rockwell scales HRC, B, A
- Accuracy according to EN-ISO 6508 and ASTM E-18
- Mechanical test cycle without electricity
The Rockwell test is a standard method to determine the coating adhesion of carbon-based films and other hard coatings (PVD, CVD).
Following this procedure, a standard Rockwell C hardness test is performed on a coated component. The deterioration at the margin of the Rockwell indentation is assessed qualitatively and assigned to an adherence class (1 to 6) on the base of a visual impression (DIN 4856).
Technical Data
• Delivery Scope
• Accessories
• Software
• Additional Information
• Downloads
• Product Inquiry
• Shop
| Hardness scales | HRA, HRB, HRC |
| Test force | 60kg, 100kg, 150kg (10kg Pre-load) |
| Test force selection | Adjusting knob |
| Hardness resolution | 1 Rockwell |
| Test cycle | Mechanical |
| Accuracy | According to EN-ISO 6508 and ASTM E-18 |
- Adjustable feet
- Diamond indenter
- Ball indenter 1/16“
- Flat anvil Ø80mm
- V-anvil Ø60mm
- Certified test blocks
- Certified indenters
